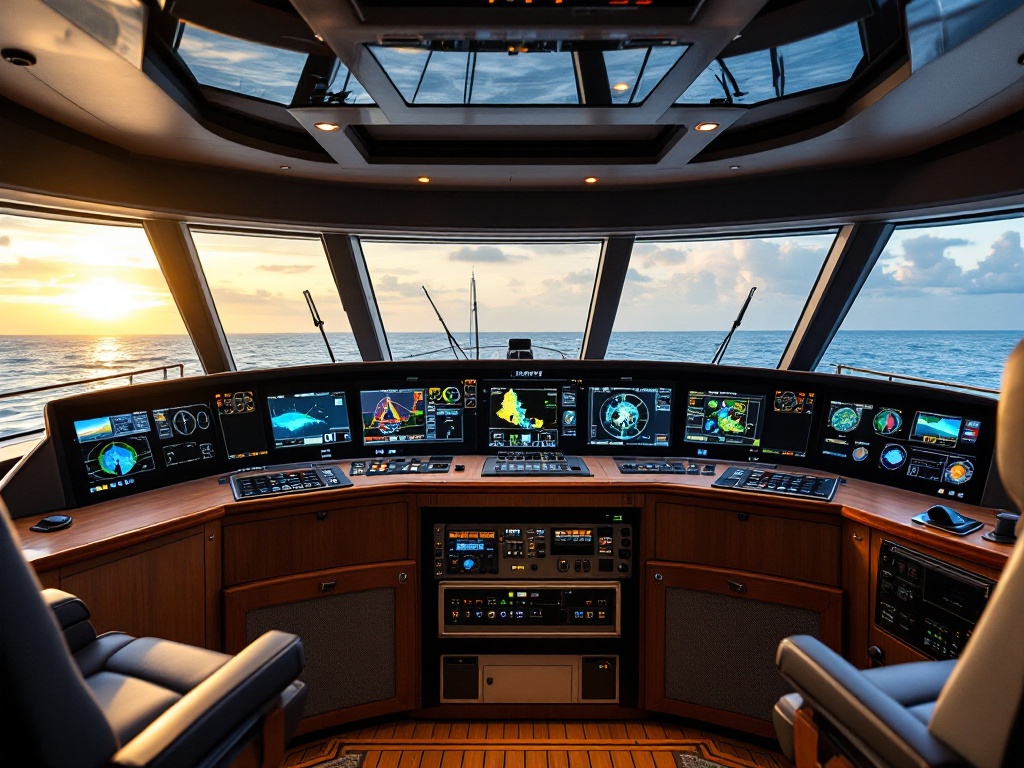

YACHT NAVIGATION SYSTEMS: COMPREHENSIVE COMPARISON
-
- Major Manufacturers and Systems
Garmin Marine:
- Flagship GPSMAP series offers displays from 7" to 24", with prices ranging from $1,200 for basic units to $12,000+ for glass bridge systems. These units feature built-in sonar capabilities, radar compatibility, and advanced networking options. The latest models include IPS displays with enhanced sunlight visibility and multi-touch control
- Advanced features include built-in Wi-Fi, Bluetooth connectivity, and compatibility with Garmin's ActiveCaptain app for remote monitoring and updates. The system allows for full integration with engine data, fuel management, and vessel monitoring systems
- Phantom series black box solutions start at $3,000 and can reach $8,000 for core components, offering maximum flexibility for custom installations. These systems can integrate with commercial-grade monitors and support multiple station configurations
- Complete integrated bridge systems for larger vessels typically exceed $50,000, including redundant displays, radar arrays, sonar modules, and autopilot integration. These packages often include professional installation and commissioning services.
Raymarine:
- Axiom Pro series combines hybrid touch and button control in displays from 9" to 24", with prices from $2,500 to $15,000+. The units feature quad-core processors and Raymarine's advanced LightHouse operating system, offering superior chart rendering and system responsiveness
- LightHouse operating system provides enhanced chart rendering, augmented reality navigation through ClearCruise AR, and comprehensive system integration. Regular software updates add new features and capabilities without additional hardware costs
- Complete bridge packages range from $25,000-75,000, including multiple displays, radar, sonar, and autopilot integration. These systems offer redundancy through network connections and can be customized for specific vessel requirements
- Advanced features include thermal camera integration, digital switching control, and advanced weather routing capabilities. The systems can be integrated with third-party equipment through NMEA 2000 and SeaTalkNG networks
- System Components
Essential Navigation Equipment:
- Multifunction Displays (MFDs) serve as the central hub for all navigation data, featuring IPS displays with 1000+ nit brightness for optimal sunlight visibility. Installation locations must consider helm ergonomics, spray protection, and cable routing requirements
- Modern MFDs support multiple video inputs for cameras, thermal imaging, and entertainment systems. Power requirements must be carefully considered, with larger units consuming up to 40W each
- GPS/GNSS receivers now support multiple constellations (GPS, GLONASS, Galileo) for enhanced accuracy and reliability. Premium units offer RTK compatibility for sub-meter accuracy and heading sensing capabilities
- Advanced receivers include built-in attitude heading reference systems (AHRS) for enhanced stability and position accuracy in challenging conditions. Installation location is critical for optimal satellite reception
- Integration Capabilities
Network Architecture:
- NMEA 2000 backbone serves as the primary data network, requiring careful planning for proper power distribution and termination. Installation costs typically range from $2,000-5,000 for basic networks, including cables, connectors, and power insertion points
- Network design must consider future expansion capabilities and maintain proper cable lengths and termination requirements. Professional installation is recommended to ensure proper grounding and interference prevention
- Ethernet networks handle high-bandwidth data streams from radar, sonar, and IP cameras. Marine-grade network switches and cables are essential, with costs starting at $1,500 for basic systems
- Proper network documentation and labeling is crucial for troubleshooting and future upgrades. Regular network health monitoring and maintenance should be scheduled
- Radar Systems
Modern Marine Radar Options:
- Solid-state radar systems have largely replaced traditional magnetron units, offering instant-on capability and reduced power consumption. Prices range from $2,500 for basic dome radars to $15,000+ for open-array systems
- Advanced Doppler processing enables real-time target motion tracking and collision avoidance features. Installation height and location significantly impact performance
- Professional installation required for optimal performance, including consideration of electromagnetic interference and proper cable routing. Installation costs typically range from $1,500-3,000
